quinta-feira, 29 de setembro de 2011

Boas práticas no Mikrotik - Parte 1 / Good practices in Mikrotik - Part 1

Neste tutorial, você vai aprender algumas dicas de como deixar seu servidor Mikrotik mais seguro. Essas boas práticas ajudam a melhorar o gerenciamento do servidor e a evitar conexões maliciosas que já as tão manjadas na grande rede. Pra isso, você vai precisar dos seguintes pré-requisitos:
In this tutorial you will learn some tips on how to make your server more secure Mikrotik.These best practices help improve server management and to prevent malicious connections that already so formulaic in large network. For that, you will need thefollowing prerequisites:
  1. Ter definido o que REALMENTE passa pelo seu servidor.
  1. Having defined what REALLY goes through your server.

Vamos começar!
Let's start!

1. Primeiro, vamos desabilitar todos os serviços que você não vai usar na sua rede. Esses serviços vem por padrão habilitados no Mikrotik. Clique em IP e depois em FIREWALL.
1. First, we disable all services that you will not use in your network. These services comeenabled by default in Mikrotik. IP and then click on Firewall.


2. Clique na aba SERVICES PORTS. Esses são os serviços que transitam de sua rede interna para a internet. Desabilite todas os serviços que você sabe que não vai utilizar em sua rede. Para desabilitar basta selecionar o serviço desejado e clicar no botão X. Na versão 5.5 os serviços disponíveis são:
2. Click on the PORTS SERVICES. These are services that travel from your internal network to the Internet. Disable all the services you know you will not use in your network.To disable just select the desired service and click the X. In version 5.5 the services available are:

FTP - Protocolo de Transferência de Arquivos. Esse deve ser o único serviço que deve ser mantido habilitado, caso contrário, sua rede ficar sem acesso a sites FTP.
H323 - Protocolo usado para sistemas que utilizam vídeo e audio, exclusivamente. Acredito que dificilmente você precisará desse serviço.
IRC - O velho serviço de bate papo. Quem nunca usou o mIRC? Pois bem, hoje em dia quase que não é utilizado.
PPTP - Protocolo de Tunelamento Ponto a Ponto. Se você pretende usar uma VPN no seu servidor, tem que deixar habilitado.
SIP - Protocolo de Iniciação de Sessão. É o velho VOIP. Se você utiliza serviço de voz sobre IP na sua rede, deixe habilitado.
TFTP - Protocolo de Transferência de Arquivos Trivial. Parecido com o FTP, mas,s muito pouco utilizado.
FTP - File Transfer Protocol. This must be the only service that should be kept enabled,otherwise your network is no access to FTP sites.
H323 - Protocol used for systems that use video and audio only. I think you hardly need this service.
IRC - The old chat service. Who never used mIRC? Well, nowadays almost not used.
PPTP - Point Tunneling Protocol of the Point. If you intend to use a VPN on your server, you have to leave enabled.
SIP - Session Initiation Protocol. It's the old VOIP. If you use Voice over IP in your network, leave enabled.
TFTP - File Transfer Protocol Trivial. Similar to FTP, but it, s very little used.


3. Bom, vamos agora desabilitar outros serviços do Mikrotik. Clique em IP e depois em SERVICES.
3. Well, we now disable other services Mikrotik. IP and then click on Services.


4. Esses são os serviços que são processados pelo seu servidor Mikrotik. Só deixe habilitado os serviços que você utiliza, e ainda assim, altere a porta padrão desses serviços para aumentar a sua segurança. Para desabilitar, selecione o serviço e clique no botão X. Os serviços são (na versão 5.5):
4. These are services that are processed by your server Mikrotik. Just leave enabledservices you use, and yet, change the default port of these services to increase their security. To disable, select the service and click the X. The services are (in version 5.5):

API - Interface de Programação de Aplicativo. Seu significado é um pouco extenso, portanto, sugiro olharem esse link e ver se realmente é importante pra você. http://pt.wikipedia.org/wiki/API
FTP - Protocolo de Transferência de Arquivo. Só que nesse FTP, o servidor é o seu próprio Mikrotik. Se você pretende fazer seu servidor Mikrotik como um Servidor FTP, tem que deixar habilitado.
SSH - Acesso Remoto Seguro. Serve para você acessar seu servidor Mikrotik via linha de comando. Se você pretende utilizar esse serviço, deixe habilitado e altere a sua porta padrão.
TELNET - O mesmo que o SSH, só que, com menos segurança.
WINBOX - É o aplicativo que você usa para acessar seu servidor Mikrotik via interface gráfica. Por motivos óbvios deve ficar habilitado.
WWW - É o serviço que possibilita a você acessar seu servidor Mikrotik via WEB, e assim, realizar configurações mais emergenciais, ou consultar gráficos, entre outras funcionalidades.
WWW-SSL - É o mesmo que o WWW, só que, seu servidor precisa está com um certificado de segurança configurado para que o acesso ao seu servidor Mikrotik ocorra de forma segura.
API - Application Programming Interface. Its meaning is a bit long, so I suggest you lookand see if this link is really important to you. http://pt.wikipedia.org/wiki/API
FTP - File Transfer Protocol. Only in this FTP server is your own Mikrotik. If you want to make your server as an FTP Server Mikrotik, have to leave enabled.
SSH - Secure Remote Access. Is for you to access your server via command lineMikrotik. If you want to use this service, let enabled and change its default port.
TELNET - The same as SSH, only with less security.
Winbox - This is the application you use to access your server via graphical interfaceMikrotik. For obvious reasons must be enabled.
WWW - is the service that allows you to access your server via WEB Mikrotik, and that they perform most emergency settings, or view graphics, among other features.
WWW-SSL - is the same as the WWW, only that your server is to have a security certificate configured so that access to your server Mikrotik occur safely.

Pronto. Agora estamos começando a dar uma cara mais profissional as configurações do seu servidor Mikrotik.
Ready. Now we are beginning to face a more professional settings of your serverMikrotik.




quarta-feira, 28 de setembro de 2011

Rastrear servidores DHCP da rede no Mikrotik. / Track DHCP servers in the network in Mikrotik.

Neste tutorial, você vai aprender configurar seu servidor Mikrotik para que ele monitore sua rede e lhe informe se existe algum servidor DHCP ativo na sua rede que não era esperado por você. Para isso você precisa dos seguintes pré-requisitos:
In this tutorial you will learn to configure your server so that it Mikrotik monitor your network and you know if there is any active DHCP server on your network that was not expected for you. For this you need the following prerequisites:
  1. Ter o endereço MAC do servidor DHCP permitido por você na rede (isso só se aplica se seu servidor DHCP for algum dispositivo que não seja o servidor Mikrotik onde você vai colocar essa regra)
  1. Having the MAC address of the DHCP server enabled on the network for you (this only applies if your DHCP server is a device other than the Mikrotik server where you will putthis rule)


Imagine a situação:
Imagine the situation:
Você configura seu servidor Mikrotik, ou outro dispositivo qualquer, para ser o servidor DHCP padrão de sua rede, de repente, alguém coloca um outro dispositivo ligado na sua rede física e ativa um outro DHCP SERVER nesse dispositivo. Quando seus clientes, ou usuários, vão solicitar IP na rede, ao invés de pegar os endereçamentos corretos criados por você no seu servidor DHCP, acabam pegando endereçamentos errados do outro dispositivo ativo na rede. Logo, sua rede fica um caos.
Mikrotik you configure your server, or any other device, to be the standard DHCP serveron your network suddenly someone puts another device plugged into your physical network and another active DHCP Server in this device. When your clients or users, will request the IP network, instead of taking the correct addresses that you create in your DHCP server, getting addresses wrong end of another active device in the network.Thus, your network is in chaos.
Esse "macete" que vou lhe ensinar, vai monitorar toda a sua rede, e, se encontrar algum outro servidor DHCP que não seja o autorizado por você, ele executará um script. O script que vou configurar aqui, é pra lhe mandar um e-mail informando essa situação.
This "trick" that will teach you, will monitor your entire network, and meet some otherDHCP server that is not authorized by you, it will execute a script. The script that'll set uphere is to send you an email informing about this.
Vamos começar!
Let's start!

1. Primeiro, vamos configurar seu servidor Mikrotik com os dados do seu servidor SMTP para que ele envie os e-mails. Clique em TOOLS e depois em EMAIL.
1. First, we configure your server Mikrotik with the data of your SMTP server so that it sends e-mails. Click TOOLS and then EMAIL.

2. No campo SERVER, coloque o IP do servidor SMTP que você vai usar. No campo PORT, coloque a porta 25. No campo FROM, coloque um usuário válido desse servidor SMTP que você usou entre < >. No campo USER, repita esse usuário válido sem < >. No campo PASSWORD, coloque a senha válida desse usuário que você utilizou. Agora clique em OK.
2. In the Server field, put the IP of the SMTP server you will use. In the Port field, enter port 25. In the FROM field, put a valid user of the SMTP server that you used the <>. In the field USER, repeat this without valid user <>. In the Password field, enter the passwordvalid for that user that you used. Now click OK.

3. Agora, vamos criar o script que vai enviar o e-mail para você. Na aba SCRIPT, clique no botão +. No campo NAME, coloque um nome qualquer para esse script. No campo POLICY, deixe todas as opções marcadas. No campo SOURCE, coloque o comando abaixo e depois clique em OK.
3. Now, let's create the script that will send the email to you. In the Script tab, click the + button. In the Name field, enter any name for this script. POLICY In the field, leave alloptions checked. In the SOURCE field, place the command below and then click OK.
/tool e-mail to=(seu e-mail) body=(o que vai está escrito no corpo do e-mail entre "") subject=(o assunto do e-mail)
/tool e-mail to=(your e-mail) body=(what will is written in the body of the e-mail between "") subject=(the subject of the e-mail)



4. Agora, vamos criar a regra que vai monitorar a rede. Clique em IP e depois em DHCP SERVER
4. Now, let's create a rule that will monitor the network. IP and then click on DHCP Server

5. Na aba ALERTS, clique no botão +. No campo INTERFACE, selecione a placa de rede que será monitorada. No campo VALID SERVERS, coloque o endereço MAC do servidor DHCP ativo na rede, mas, autorizado por você. Assim, ele não irá tratar seu servidor DHCP como um desconhecido. No campo ALERT TIMEOUT, coloque depois de quanto tempo você quer ser informado novamente de um servidor DHCP desconhecido que já lhe foi avisando antes. Exemplo: O alerta detectou um servidor DHCP desconhecido na rede e lhe mandou um e-mail. Se você configurou esse campo com dez minutos, então, se daqui a dez minutos esse servidor DHCP desconhecido continuar ativo, o alerta vai te avisar de novo. O campo UNKNOW SERVERS é só de leitura. Quando o alerta encontrar um servidor DHCP desconhecido na rede, ele vai te mostrar o endereço MAC desse servidor. Assm fica mais fácil de você identificar qual é o dispositivo desconhecido. No campo ON ALERT, coloque o mesmo nome, exatamente igual com maiúsculas e minúsculas, script que você criou para lhe enviar o e-mail. Depois, clique em OK.
5. ALERTS tab, click the + button. In the Interface field, select the network card that will be monitored. VALID SERVERS in the field, put the MAC address of the active DHCP server on the network, but authorized by you. So he will not treat her as an unknownDHCP server. ALERT TIMEOUT in the field, then put on how long you want to be informed again of an unknown DHCP server that you have been warned before.Example: The alarm has detected an unknown DHCP server on the network and sent him an email. If you set this field with ten minutes, so if in ten minutes this unknownDHCP server remains active, the alert will warn you again. SERVERS UNKNOW field is read-only. When the alert to find an unknown DHCP server on the network, it will show you the MAC address of that server. ASSM is easier for you to identify what the unknown device. ALERT ON the field, put the same name, with exactly the same case,the script you created to send you e-mail. Then click OK.

Pronto. Sua rede está sendo monitorada, e, se alguém ativar um outro servidor DHCP que não tenha sido autorizado por você, um e-mail chegará na sua caixa postal com o aviso.
Ready. Your network is being monitored, and if someone activate another DHCP serverthat has not been authorized by you, an email will arrive in your mailbox with the warning.

terça-feira, 27 de setembro de 2011

Backup agendado e envio por e-mail no Mikrotik. / Scheduled backup and sending email in Mikrotik.

Neste tutorial, você vai aprender como configurar o seu servidor Mikrotik para que ele faça o backup automático e logo após envie pra você por e-mail. Para isso, você precisa dos seguintes pré-requisitos:
In this tutorial you will learn how to configure your server Mikrotik for it to do automatic backup and soon after to send you by e-mail. For this you need the followingprerequisites:
  1. Saber qual é o IP do servidor SMTP que você vai usar para enviar o e-mail;
  2. Ter um usuário e senha válidos desse servidor SMTP.
  1. Know what the IP of the SMTP server you will use to send e-mail;
  2. Have a valid username and password of SMTP server.
Vamos começar.
Let's start

1. Primeiro, vamos criar um script para criar o backup do seu servidor. Clique em SYSTEM e depois em SCRIPT.
1. First, let's create a script to create the backup of your server. Click System and thenSCRIPT.


2. Na aba SCRIPT, clique no botão +. No campo NAME, coloque o nome qualquer para esse script. No campo POLICY, deixe todas as opções marcadas. No campo SOURCE, coloque o comando abaixo e depois clique em OK:
2. In the Script tab, click the + button. In the Name field, put any name for this script.POLICY In the field, leave all options checked. In the SOURCE field, place the commandbelow and then click OK:

/system backup save name=o nome que quiser dar ao backup
/system backup save name=the name you want to give backup


3. Agora, vamos criar o script que vai enviar o e-mail para você. Na aba SCRIPT, clique no botão +. No campo NAME, coloque um nome qualquer para esse script. No campo POLICY, deixe todas as opções marcadas. No campo SOURCE, coloque o comando abaixo e depois clique em OK:
3. Now, let's create the script that will send the email to you. In the Script tab, click the + button. In the Name field, enter any name for this script. POLICY In the field, leave alloptions checked. In the SOURCE field, place the command below and then click OK:

/tool e-mail send file=(o nome que você deu ao script do backup criado no passo anterior seguido de .backup) to=(seu e-mail) body=(o que vai está escrito no corpo do e-mail entre "") subject=(o assunto do e-mail)
/tool e-mail send file=(the name you gave the script the backup created in the previous step, followed by .backup) to=(your e-mail) body=(what will is written in the body of the e-mail between "") subject=(the subject of the e-mail)


4. Agora, vamos configurar seu servidor Mikrotik com os dados do seu servidor SMTP para que ele envie os e-mails. Clique em TOOLS e depois em EMAIL.
4. Now we will configure your server with the data Mikrotik of your SMTP server so that it sends e-mails. Click TOOLS and then EMAIL.


5. No campo SERVER, coloque o IP do servidor SMTP que você vai usar. No campo PORT, coloque a porta 25. No campo FROM, coloque um usuário válido desse servidor SMTP que você usou entre < >. No campo USER, repita esse usuário válido sem < >. No campo PASSWORD, coloque a senha válida desse usuário que você utilizou. Agora clique em OK
5. In the Server field, put the IP of the SMTP server you will use. In the Port field, enter port 25. In the FROM field, put a valid user of the SMTP server that you used the <>. In the field USER, repeat this without valid user <>. In the Password field, enter the passwordvalid for that user that you used. Now click OK


6. Antes de fazer o agendamento dos scripts e, assim, torná-los automáticos, vamos testar se tudo está funcionando. Clique novamente em SYSTEM e depois em SCRIPT. Selecione o script que cria o backup e depois clique no botão RUN SCRIPT. Agora clique no botão FILES no menu de botões e certifique que o backup que você criou está lá. Se não está, volte para o início desse tutorial. Se está, volte a janela de scripts, selecione o script que envia o backup e clique em RUN SCRIPT. Agora verifique em sua caixa de e-mail se o seu backup chegou em anexo. Se não chegou, clique no botão LOG no menu de botões e verifique qual erro aconteceu no envio do e-mail.
6. Before making the scheduling of scripts and thus make them automatic, test that everything is working. Click again and then SYSTEM SCRIPT. Select the script thatcreates the backup and then click on RUN SCRIPT. Now click the FILES menu buttonsand make sure the backup that you created is there. If not, go back to the beginning of this tutorial. If you re-scripts window, select the script that sends the backup and click Run Script. Now check box in your e-mail if your backup arrived attached. If not here, click theLOG menu buttons and see what error occurred in sending the email.

7. Agora, se deu tudo certo, vamos programas para que o backup seja realizado e enviado automaticamente. Clique no botão SYSTEM e depois em SCHEDULER.
7. Now, if everything went right, let's programs for the backup is done and sent automatically. Click the button and then SYSTEM SCHEDULER.


8. Vamos criar o agendamento para executar o script do backup. Clique no botão +. No campo NAME, coloque o nome que quiser para esse agendamento. No campo START DATE, coloque quando esse agendamento deve começar. No campo START TIME, coloque que horas ele deve executar. No campo INTERVAL, coloque de quanto em quanto tempo esse agendamento deve ser executado. No meu caso, ele executa de sete em sete dias. No campo ON EVENT, coloque o mesmo nome, exatamente igual (com letras maiúsculas e minúsculas), do que você colocou no script para realizar o backup. No campo POLICY, deixe tudo marcado e clique em OK.
8. Let's create the schedule to run the backup script. Click the + button. In the Name field,enter the name you want for this schedule. In the START DATE field, set when theschedule should start. In the START TIME field, put what time it should run. In the Interval field, set how often to this schedule should run. In my case, it runs every seven days.EVENT ON the field, put the same name, exactly the same (with uppercase andlowercase), than you put in the script to perform the backup. POLICY In the field, leave everything checked and click OK.


9. Agora, vamos criar o agendamento para enviar o e-mail com o backup para você. Clique no botão +. No campo NAME, coloque o nome que quiser para esse agendamento. No campo START DATE, coloque quando esse agendamento deve começar (naturalmente, deve começar no mesmo dia que o agendamento do backup). No campo START TIME, coloque que horas ele deve executar (sugiro colocar cinco minutos após a hora que foi configurada no agendamento do backup). No campo INTERVAL, coloque de quanto em quanto tempo esse agendamento deve ser executado (sugiro o mesmo intervalo que o agendamento do backup). No meu caso, ele executa de sete em sete dias. No campo ON EVENT, coloque o mesmo nome, exatamente igual (com letras maiúsculas e minúsculas), do que você colocou no script para realizar o envio do e-mail. No campo POLICY, deixe tudo marcado e clique em OK.
9. Now, create the schedule for sending the e-mail with the backup for you. Click the + button. In the Name field, enter the name you want for this schedule. In the START DATEfield, place to start when the schedule (of course, must begin the same day as the backup schedule). In the START TIME field, put what time it should run (I suggest putting five minutes after the hour that was set up in the backup schedule). In the Interval field, set how often the schedule is to run this (I suggest the same range as the backup schedule). In my case, it runs every seven days. EVENT ON the field, put the same name, exactly the same (with uppercase and lowercase), than you put in the script to make sending e-mail.POLICY In the field, leave everything checked and click OK.


Pronto. Seu backup está configurado para executar automaticamente e ser enviado para você por e-mail.
Ready. Your backup is configured to run automatically and be sent to you via e-mail.

segunda-feira, 26 de setembro de 2011

Controle de banda simples por IP no Mikrotik. / Simple bandwidth control for IP in Mikrotik.

Nesse tutorial, você vai aprender a fazer um controle de banda simples por IP no Mikrotik. Para isso, você precisa dos seguintes pré-requisitos.
In this tutorial you will learn to make a simple bandwidth control for IP in Mikrotik. For this you need the following prerequisites.
  1. Saber quais IPs serão controlados;
  2. Noções básicas de endereçamentos IPs;
  3. Noções básicas sobre largura de banda.
  1. Knowing which IPs will be checked;
  2. Basics of IP addresses;
  3. Understanding bandwidth.
Vamos começar!
Let's start!

1. Clique em QUEUES e na aba SIMPLE QUEUES, clique no botão +.
1. Click QUEUE and Simple Queue tab, click the + button.


2. Na aba GENERAL, no campo NAME, coloque o nome que quiser. No campo TARGET ADDRESS, coloque um IP, ou uma faixa de rede (exemplo: 192.168.55.25 ou 192.168.55.0/24) que deseja controlar a banda. Marque os checkbox TARGET UPLOAD e TARGET DOWNLOAD. No campo MAX. LIMIT, selecione a velocidade desejada para upload e download, ou, coloque manualmente (OBS.: se colocar manualmente, não esqueça de colocar no final a letra "k" se for em kbits ou "M" se em megasbits). Depois clique em OK.
2. On the General tab, in the Name field, enter the name you want. TARGET ADDRESSin the field, put an IP network or a range (example: 192.168.55.0/24 192.168.55.25 or) you want to control the band. Mark the checkbox TARGET TARGET UPLOAD andDOWNLOAD. In the MAX field. LIMIT, select the desired speed for upload and download, or manually feed (NOTE: if you put manually, do not forget to put at the end of the letter "k" if it is in kbits or "M" in megasbits). Then click OK.


Pronto. Agora basta repetir a mesma regra com todos os IP que você queira controlar a banda. Nesse meu exemplo, o IP 192.168.55.25 só vai poder consumir, no máximo, 256 kbits do meu link total de internet.
Ready. Now just repeat the same rule to all IP that you want to control the band. In my example, the IP address 192.168.55.25 will only be able to consume up to 256 kbits of my total internet link.

Configurar DHCP Server e DHCP Client no Mikrotik. / Configure DHCP Server and DHCP Client in Mikrotik.


Neste tutorial, você vai aprender a realizar as configurações básicas do DHCP Server e DHCP Client do Mikrotik. Para isso, você precisa dos seguintes pré-requisitos:
In this tutorial you will learn to perform basic configuration of DHCP Server and DHCPClient Mikrotik's. For this you need the following prerequisites:
  1. Ter noções básicas de endereçamentos IPs.
  1. Have some basic IP addresses.
Vamos começar!
Let's start!


1. Vamos começar configurando o servidor Mikrotik para que ele funcione como um Cliente DHCP. Clique em IP e depois em DHCP CLIENT.
1. Let's start configuring the server Mikrotik to make it work as a DHCP client. IP and then click on DHCP CLIENT.

2. Clique no botão + e na aba DHCP, no campo INTERFACE, selecione qual a placa de rede que você deseja receber um IP automático. Deixe todas as outras opções marcadas e clique em OK.
2. Click the + button in the DHCP tab in the Interface field, select which network card you want to receive an IP automatically. Leave all other options checked and click OK.

3. Após clicar em OK, aguarde até que a placa de rede pegue um IP de algum servidor DHCP que está conectado à ela.
3. After you click OK, wait until the network card get an IP from any DHCP server that is connected to it.

Pronto. Seu servidor Mikrotik já está pegando IP automático. Agora vamos configurar ele para ser um servidor DHCP.
Ready. Mikrotik your server is already getting IP automatically. Now let's set it to be aDHCP server.
1. Clique em IP e depois em POOL. Aqui é onde vamos configurar o range de IPs que vocês deseja distribuir na rede.
1. Click IP and then POOL. Here is where we configure the IP range you want to distribute the network.

2. Na aba POOLS, clique no botão +. No campo NAME, coloque o nome que quiser. No campor ADDRESS, coloque o range de IPs (inicial e final) que você quer distribuir. Exemplo: 192.168.55.10-192.168.55.50. Nesse exemplo que dei, seu servidor vai distribuir IPs do final 10 até o final 50, ou seja, vai distribuir 40 IPs. Depois, clique em OK.
2. POOLS tab, click the + button. In the Name field, enter the name you want. Incamporee ADDRESS, put the IP range (initial and final) that you want to distribute.Example: 192.168.55.10-192.168.55.50. I gave this example, your server will distributeIPs to the end 10 end 50, or 40 will distribute IPs. Then click OK.


3. Agora clique em IP e depois em DHCP SERVER.
3. Now click on IP and then click DHCP Server.

4. Na aba DHCP, clique no botão +. No campo NAME coloque o nome que quiser, no campo INTERFACE selecione a placa de rede que irá distribuir os endereços IPs. No campo ADDRESS POOL, selecione o POOL que você criou no passo anterior. Marque o checkbox ADD ARP FOR RELEASE e clique em OK.
4. DHCP tab, click the + button. In the Name field enter the name you want in the fieldInterface select the network card that will distribute the IP addresses. In the field address pool, select the pool you created one. Mark the checkbox ADD FOR RELEASE ARPand click OK.

5. Agora clique na aba NETWORKS e depois clique no botão +. No campo NAME, coloque a rede que será distribuída. A mesma rede que você criou no POOL. No campo GATEWAY, coloque o IP do gateway da sua rede (na maioria dos casos é o IP do seu próprio servidor Mikrotik). No campo NETMASK, coloque a máscara de sua rede. No campo DNS SERVERS, coloque os IPs dos seus servidores DNS que será distribuídos. Depois clique em OK.
5. NETWORKS Now click on the tab and then click the + button. In the Name field, put the network that will be distributed. The same network that you created in the pool. In the Gateway, set the gateway IP in your network (in most cases is the IP of your own serverMikrotik). NETMASK in the field, put the mask on your network. DNS SERVERS in the field, put the IPs of your DNS servers that will be distributed. Then click OK.

Proto. Seu servidor DHCP está funcionando. Para saber quais máquinas da sua rede já pegaram IP do seu servidor, clique na aba LEASES.
Proto. Your DHCP server is working. To see which machines on your network has picked up your server's IP, click on the tab Lease.

domingo, 25 de setembro de 2011

Configurar IP, DNS, GATEWAY e NAT no Mikrotik. / Configure IP, DNS, gateway and NAT in Mikrotik.

Neste tutorial, você vai aprender a realizar as configurações básicas para o acesso a internet da sua rede interna. Para isso, você precisa dos seguintes pré-requisitos:
In this tutorial you will learn how to perform basic settings for the internet access from your internal network. For this you need the following prerequisites:
  1. Ter posse dos endereçamentos IPs de seu provedor de internet (IP, Gateway e DNS);
  2. NÃO utilizar internet ADLS (Velox, Speed e etc.) a não ser que, o modem esteja ROTEADO;
  3. Ter noção básica de máscaras de rede.
  4. Baixar o aplicativo WINBOX.
  1. Having ownership of the IP addresses of your ISP (IP, Gateway and DNS);
  2. Do not use Internet ADSL (Velox, Speed ​​and etc.). Unless the modem is routed;
  3. Have basic understanding of network masks.
  4. Download the application Winbox.
Vamos começar.
Let's start.

OBS.: Para realizar as configurações a baixo vocês precisa fazer o download do programa WINBOX para poder se conectar no seu servidor Mikrotik.
OBS.: To perform the following settings you need to download the program Winbox to be able to connect to your server Mikrotik.
1. Renomeie as interfaces de redes para facilitar as configurações. Clique no botão INTERFACES, e na aba INTERFACES identifique qual é a sua placa onde está conectada sua rede interna e qual placa está conectada o roteador do seu link de internet.
1. Rename network interfaces for easy settings. Click INTERFACES. INTERFACESidentify which tab is where your card is connected to your internal network and which cardis connected to the router from your Internet link.



2. Dê um duplo clique na placa de rede desejada. Na aba GENERAL clique no campo NAME e coloque o nome que quiser para identificar essa placa. Após a alteração, clique em OK.
2. Double-click the network card you want. On the General tab click the NAME field and enter the name you want to identify this card. After the change, click OK.



3. Agora vamos colocar os IPs nas devidas placas. Clique em IP depois em ADDRESS.
3. Now let's put the IPs in the appropriate boards. Then click IP ADDRESS.

4. Clique no boatão + e no campo ADDRESS, coloque o ip da sua placa que está conectada na sua rede interna, depois, no campo INTERFACE, selecione a sua interface da rede interna. Faça o mesmo processo com o endereço ip da placa conectada ao link de internet.
4. Click the + and boatão ADDRESS field, put the ip of your card that is connected to your internal network, then the Interface field, select your internal network interface. Do the same process with the ip address of the card connected to the Internet link.

5. Agora vamos configurar o DNS. Clique em IP e depois em DNS.
5. Now let's configure the DNS. IP and then click DNS.

6. Na aba STATIC, clique no botão SETTINGS.
6. STATIC tab, click the Settings button.

7. No campo SERVERS, coloque o ip do servidor DNS. Se quiser colocar mais de um servidor basta clicar na SETA PRA BAIXO. Após, marque o checkbox ALLOW REMOTE REQUESTS. Se você não marcar esse checkbox a sua rede interna não vai conseguir resolver nomes, consequentemente, as páginas de internet não vão abrir. Depois, clique em OK.
7. SERVERS in the field, set the DNS server ip. If you want to put more than one serverjust click the arrow down. Then, select the checkbox Allow Remote Requests. If you do not select this checkbox your internal network will not be able to resolve names, hence theweb pages will not open. Then click OK.

8. Agora vamos configurar o gateway, ou seja, a rota padrão para conexões com a internet. Clique em IP e depois em ROUTES.
8. Now let's configure the gateway, ie a default route to internet connections. Click IP and then ROUTES.


9. Na aba ROUTES clique no botão +. Na aba GENERAL, no campo DST. ADDRESS coloque o IP 0.0.0.0/0 (significa que a rota que você vai colocar é pra QUALQUER destino que não seja da sua própria rede). No campo GATEWAY coloque o ip do equipamento que está conectado na sua placa de rede que dá acesso ao link de internet. Provavelmente esse equipamento é um roteador de seu provedor de internet. Depois clique em OK.
9. ROUTES tab click the + button. On the General tab, in the STD field. Use the IPADDRESS 0.0.0.0 / 0 (meaning that the route is going to put you to any destination thatis not its own network). In the GATEWAY ip put the equipment that is connected to your network card that gives access to the Internet link. Probably this equipment is a router from your ISP. Then click OK.


10. Agora vamos configurar o NAT. Clique em IP e depois em FIREWALL.
10. Now let's configure the NAT. Click IP and then FIREWALL.

11. Na aba NAT, clique no botão +.
11. NAT tab, click the + button.

12. Na aba GENERAL, no campor CHAIN, selecione a opção SRCNAT. no campo OUT.INTERFACE, selecione a placa de rede que está conectado o seu link de internet. Agora clique na aba ACTION e no campo ACTION, selecione a opção MASQUERADE. Depois clique em OK.
12. On the General tab, in camporee CHAIN, select the option SRCNAT.OUT.INTERFACE field, select the network adapter that is connected to your Internet link.Now click on the tab, and ACTION ACTION field, select the option MASQUERADE. Then click OK.



Pronto. Se você seguiu todos esses passos e colocou os endereçamentos corretos, a sua internet já deve está funcionando. Para testar, clique em NEW TERMINAL e depois ping para um site.
Ready. If you followed all these steps and put the correct address, your Internet should already be working. To test, click NEW TERMINAL and then ping a site.

quarta-feira, 21 de setembro de 2011

Como instalar Mikrotik via CD. / Mikrotik How to install via CD.


Nesse tutorial, você vai aprender a instalar o sistema Mikrotik em um computar x86 através do CD. Para isso, você precisa dos seguintes pre-requisitos:
In this tutorial you will learn how to install the system on a Mikrotik x86 computing from the CD. For this you need the following prerequisites:
  1. Baixar o a versão atual do Mikrotik e queimar em CD-R (a versão utilizada nesse post é a 5.7);
  2. Ter um computador x86 (qualquer máquina com configurações simples);
  3. O leitor de CD desse computador NÃO pode ser com conexão SATA. Deve ser IDE.

  1. Him to download the current version of Mikrotik and burn to CD-R (the version used in this post is 5.7);
  2. Having an x86 machine (any machine with simple settings);
  3. The CD player is NOT that computer with SATA connection. It should be IDE.
Vamos começar!
Let's start!

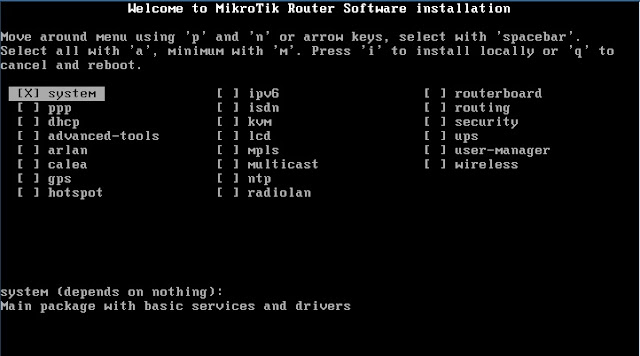

1. Coloque o CD no leitor da máquina, configure a BIOS para dar boot pelo CD, reinicie o computador e espere até aparecer a imagem a baixo.
1. Place the CD in the machine, set the BIOS to boot from the CD, restart your computer and wait until the image below.



2. Tecle a letra A para selecionar todos os pacotes e depois tecle a letra I para dar início a instalação. O sistema vai perguntar se deseja manter as configurações antigas. Você deve teclar a letra N. Depois ele avisa que tudo do seu HD será apagado e perguntar se deseja continuar com a instalação. Aperte a tecla Y para continuar. Então, o sistema será instalado e ele vai pedir para que você aperte ENTER para ele reiniciar a máquina. Quando a máquina for reiniciada, se lebre de mudar as configurações da BIOS, colocando para que o computador deixe de iniciar pelo CD e sim pelo HD.
2. Hit the letter A to select all the packages and then press the letter I to start the installation. The system will ask if you want to keep the old settings. You must type the letter N. Then he warns that all of your hard drive will be deleted and ask whether to continue with the installation. Press the Y key to continue. Then the system will beinstalled and it will ask you to press ENTER to restart the machine it. When the machinereboots, you hare to change BIOS settings, putting the computer to stop booting from the CD but the HD.

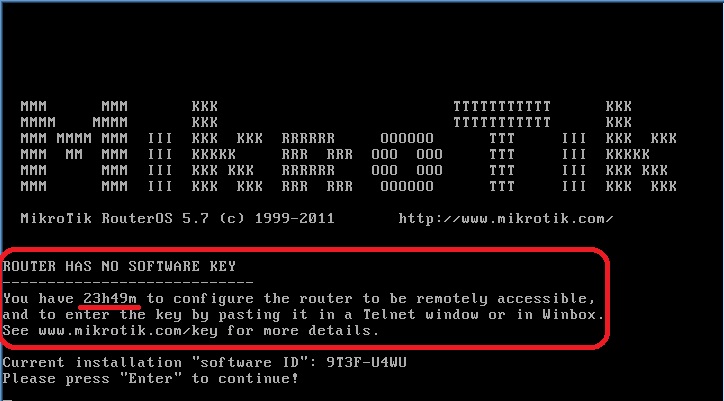

3. O sistema Mikrotik será carregado e irá pedir um usuário e senha. O usuário padrão é ADMIN e a senha é em branco, basta dar um ENTER. Quando você fizer o logon, ele informará que você tem 24 horas para poder colocar a licença do sistema. Se nesse tempo a licença não for inserida, o sitema não funcionará mais. Contate juliana@mdbrasil.com.br para saber como registrar seu sistema.
3. The Mikrotik system will be loaded and will ask for a username and password. The default username is admin and the password is blank, just take a carriage return. When you log on, it will tell you that you have 24 hours to put the system license. If at that timethe license is not entered, the system will no longer work. Contactjuliana@mdbrasil.com.br to learn how to register your system.

4. Pronto. Seu sistema Mikrotik está instalado e pronto para as configurações.
4. Ready. Mikrotik your system is installed and ready for the settings.
